Default Muddle over left/right channel of TRS plug

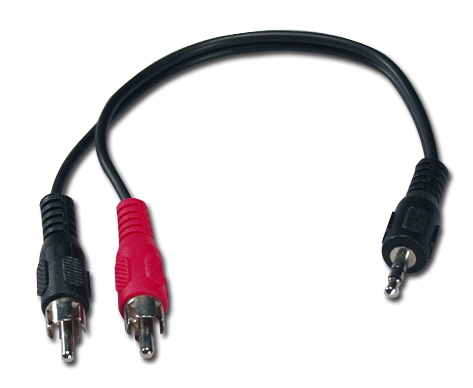

I have a 3.5mm TRS plug which is prewired. It looks like this

http://www.mycablemart.com/store/ima...1085_large.jpg

The tip of that TRS plug is connected to the red wire (RIGHT
channel).

Has that been done correctly? I thought the tip of the TRS plug is
the LEFT channel.

(I also have a 3.5mm TRS socket which is prewired and the red wire is
also the tip.)
  #2   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 3,833
Default Muddle over left/right channel of TRS plug

Nope. Tip is left. It has been for 50 years.


  #3   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 3,833
Default Muddle over left/right channel of TRS plug

Nope. Tip is left. It has been for 50 years.


  #4   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 72
Default Muddle over left/right channel of TRS plug


"Peter" wrote in message
...
I have a 3.5mm TRS plug which is prewired. It looks like this

http://www.mycablemart.com/store/ima...1085_large.jpg

The tip of that TRS plug is connected to the red wire (RIGHT
channel).

Has that been done correctly? I thought the tip of the TRS plug is
the LEFT channel.

(I also have a 3.5mm TRS socket which is prewired and the red wire is
also the tip.)


Does it matter? If it's backwards then just reverse the RCA's?


  #5   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
isw isw is offline
external usenet poster

Posts: 320
Default Muddle over left/right channel of TRS plug

In article ,
"William Sommerwerck" wrote:

Nope. Tip is left. It has been for 50 years.


Just remember: "Ring Right"

Isaac


  #6   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 43,017
Default Muddle over left/right channel of TRS plug

In article ,
Peter wrote:
I have a 3.5mm TRS plug which is prewired. It looks like this


http://www.mycablemart.com/store/ima...1085_large.jpg


The tip of that TRS plug is connected to the red wire (RIGHT
channel).


Has that been done correctly? I thought the tip of the TRS plug is
the LEFT channel.


(I also have a 3.5mm TRS socket which is prewired and the red wire is
also the tip.)


The tip is normally left - as left is conventionally follows mono as
regards wiring convention.

As to colours, in the UK some pro stuff uses red and green as per the
naval convention - ie red (port) left, green (starboard) right. Whereas in
domestic stuff red is usually right. Just to add to the confusion.

--
*Speak softly and carry a cellular phone *

Dave Plowman London SW
To e-mail, change noise into sound.
  #7   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 3,833
Default Muddle over left/right channel of TRS plug

As to colours, in the UK some pro stuff uses red and green
as per the naval convention - ie red (port) left, green (starboard)
right. Whereas in domestic stuff red is usually right. Just to add
to the confusion.


As far as the RCA plugs are concerned, the Red plug has long been Right.


  #8   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 3,833
Default Muddle over left/right channel of TRS plug

Nope. Tip is left. It has been for 50 years.

I happen to like my tips on the right.


Why do I feel I'm sitting under the caterpillar's mushroom?


  #9   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 43,017
Default Muddle over left/right channel of TRS plug

In article ,
William Sommerwerck wrote:
As to colours, in the UK some pro stuff uses red and green
as per the naval convention - ie red (port) left, green (starboard)
right. Whereas in domestic stuff red is usually right. Just to add
to the confusion.


As far as the RCA plugs are concerned, the Red plug has long been Right.


Pro gear doesn't use RCA plugs. But can use TRS.

--
*I started out with nothing, and I still have most of it*

Dave Plowman London SW
To e-mail, change noise into sound.
  #10   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 3,469
Default Muddle over left/right channel of TRS plug

On 9/25/2009 4:46 AM William Sommerwerck spake thus:

As to colours, in the UK some pro stuff uses red and green
as per the naval convention - ie red (port) left, green (starboard)
right. Whereas in domestic stuff red is usually right. Just to add
to the confusion.


As far as the RCA plugs are concerned, the Red plug has long been Right.


As a mnemonic, I think of it as a political thing (right=red, left=blue
[i.e., not-red]).


--
Found--the gene that causes belief in genetic determinism


  #11   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 501
Default Muddle over left/right channel of TRS plug

On Fri, 25 Sep 2009 00:19:39 +0100, Peter wrote:

I have a 3.5mm TRS plug which is prewired. It looks like this

http://www.mycablemart.com/store/ima...1085_large.jpg

The tip of that TRS plug is connected to the red wire (RIGHT
channel).

Has that been done correctly? I thought the tip of the TRS plug is
the LEFT channel.

(I also have a 3.5mm TRS socket which is prewired and the red wire is
also the tip.)


Does it matter? Can you tell "right" from "left" by ear? Lessee, strings
on the left, brass on the right, percussion in back...

Of course if it's wrong, just fire up the ol' soldering iron, and swap
them. Takes about four minutes.

Cheers!
Rich


  #12   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 501
Default Muddle over left/right channel of TRS plug

On Fri, 25 Sep 2009 09:48:49 -0700, David Nebenzahl wrote:
On 9/25/2009 4:46 AM William Sommerwerck spake thus:

As to colours, in the UK some pro stuff uses red and green
as per the naval convention - ie red (port) left, green (starboard)
right. Whereas in domestic stuff red is usually right. Just to add
to the confusion.


As far as the RCA plugs are concerned, the Red plug has long been Right.


As a mnemonic, I think of it as a political thing (right=red, left=blue
[i.e., not-red]).


That's a recent innovation that came with Bush II. Historically, the "Reds"
have been the commies. ;-)

Cheers!
Rich

  #13   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 501
Default Muddle over left/right channel of TRS plug

On Fri, 25 Sep 2009 17:38:21 +0100, Dave Plowman (News) wrote:

In article ,
William Sommerwerck wrote:
As to colours, in the UK some pro stuff uses red and green
as per the naval convention - ie red (port) left, green (starboard)
right. Whereas in domestic stuff red is usually right. Just to add
to the confusion.


As far as the RCA plugs are concerned, the Red plug has long been Right.


Pro gear doesn't use RCA plugs. But can use TRS.


Is "TRS" a mnemonic for something? All I can think of when I see it is
the Radio Shack/Tandy TRS-80, pronounced "Trash 80". ;-)

Thanks,
Rich


  #14   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 501
Default Muddle over left/right channel of TRS plug

On Fri, 25 Sep 2009 07:06:06 -0700, William Sommerwerck wrote:

Nope. Tip is left. It has been for 50 years.


I happen to like my tips on the right.


Why do I feel I'm sitting under the caterpillar's mushroom?


Good drugs? %-}

Cheers!
Rich


  #15   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 3,833
Default Muddle over left/right channel of TRS plug

Is "TRS" a mnemonic for something?

tip / ring / sleeve




  #16   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 43,017
Default Muddle over left/right channel of TRS plug

In article ,
Rich Grise wrote:
As far as the RCA plugs are concerned, the Red plug has long been
Right.


Pro gear doesn't use RCA plugs. But can use TRS.


Is "TRS" a mnemonic for something? All I can think of when I see it is
the Radio Shack/Tandy TRS-80, pronounced "Trash 80". ;-)


Tip ring sleeve. Unbalanced stereo or balanced mono. Or sometimes a mono
in and out on a mixer.

I'd guess originally designed for telephone exchanges. In the UK, the
telephone one is known as a type 316 and has a smaller tip than stereo
jack plugs. And is still in use - must have been designed over 100 years
ago. Dunno if the US one is the same.

--
*Why isn't there a special name for the back of your knee?

Dave Plowman London SW
To e-mail, change noise into sound.
  #17   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 501
Default Muddle over left/right channel of TRS plug

On Fri, 25 Sep 2009 23:44:44 +0100, Dave Plowman (News) wrote:
In article ,
Rich Grise wrote:
As far as the RCA plugs are concerned, the Red plug has long been
Right.

Pro gear doesn't use RCA plugs. But can use TRS.


Is "TRS" a mnemonic for something? All I can think of when I see it is
the Radio Shack/Tandy TRS-80, pronounced "Trash 80". ;-)


Tip ring sleeve. Unbalanced stereo or balanced mono. Or sometimes a mono
in and out on a mixer.

I'd guess originally designed for telephone exchanges. In the UK, the
telephone one is known as a type 316 and has a smaller tip than stereo
jack plugs. And is still in use - must have been designed over 100 years
ago. Dunno if the US one is the same.


Oh, yes - the US has been using "Tip & Ring" for about as long as there
have been telephone exchanges. (a hundred years?) :-)

My cousin Owen inherited Uncle Dick's farm - they still have a
wall-mounted crank-style phone with the separate earpiece similar to this:
http://youngandthewireless.com/empty..._telephone.jpg
[mind the wrap]
and they have an early phone book - most of the phone numbers were two
digits! (Circuit & phone). (it wasn't a very big town. ;-)

If you're curious, it's Lake Crystal, MN.

Cheers!
Rich


  #18   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 62
Default Muddle over left/right channel of TRS plug

On Sat, 26 Sep 2009 00:12:39 +0100, Stuart
wrote:

In article ,
Dave Plowman (News) wrote:

Tip ring sleeve. Unbalanced stereo or balanced mono. Or sometimes a mono
in and out on a mixer.


But, I think, more commomly known as a "Jack plug". Usually available in
2.5mm, 3.5mm and 1/4". The P.O. type 316 is 1/4", as are the ones more
commonly used in the applications Dave has suggested.


"jack plug" seems to be a British usage - elsewhere it is an oxymoron
- a plug is inserted into a jack, so you can't have a "jack plug". In
the US and Canada, the connectors are more commonly known as "phone
plug" (male) and "phone jack" (female).

I recall seeing a version slightly smaller than 1/4" (0.216?)
somewhere.

The telco versions have a different tip shape than the commercial
versions.


--
Peter Bennett, VE7CEI
peterbb4 (at) interchange.ubc.ca
GPS and NMEA info: http://vancouver-webpages.com/peter
Vancouver Power Squadron: http://vancouver.powersquadron.ca
  #19   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 43,017
Default Muddle over left/right channel of TRS plug

In article .com, Peter
Bennett wrote:
On Sat, 26 Sep 2009 00:12:39 +0100, Stuart
wrote:


In article ,
Dave Plowman (News) wrote:

Tip ring sleeve. Unbalanced stereo or balanced mono. Or sometimes a
mono in and out on a mixer.


But, I think, more commomly known as a "Jack plug". Usually available in
2.5mm, 3.5mm and 1/4". The P.O. type 316 is 1/4", as are the ones more
commonly used in the applications Dave has suggested.


"jack plug" seems to be a British usage - elsewhere it is an oxymoron
- a plug is inserted into a jack, so you can't have a "jack plug". In
the US and Canada, the connectors are more commonly known as "phone
plug" (male) and "phone jack" (female).


Seems strange to me as 'Jack' is a common name denoting male. Jack rabbit,
jack tar, etc. Wonder what the root is in this case?
But would they *really* talk about a 'phone plug' in a telephone exchange?
You don't in a sound studio where such things are used in a patch bay -
known as a jackfield. The leads with a plug on both ends are known as
patch cords or double enders. But of course jargon varies even in the same
country - never mine different ones.

I recall seeing a version slightly smaller than 1/4" (0.216?)
somewhere.


If it's the telecom or pro version, called bantam.

The telco versions have a different tip shape than the commercial
versions.


One thing to note is if you insert a 1/4 stereo to a jack socket designed
for a telco type it can short things out - it pushes the tip contact onto
the frame.

--
*My designated driver drove me to drink

Dave Plowman London SW
To e-mail, change noise into sound.
  #20   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 3,833
Default Muddle over left/right channel of TRS plug

"jack plug" seems to be a British usage -- elsewhere it is an
oxymoron -- a plug is inserted into a jack, so you can't have
a "jack plug". In the US and Canada, the connectors are more
commonly known as "phone plug" (male) and "phone jack"
(female).


Seems strange to me as 'Jack' is a common name denoting
male. Jack rabbit, jack tar, etc. Wonder what the root is in this
case?


Believe it or not, the OED2 doesn't list this usage.

Many years ago, when I worked for Bendix Field Engineering, I became
acquainted with what was known as a "jackscrew" connector. There were male
and female versions, so I suggested to the manufacturer that they be
rechristened "johnscrew" and "janescrew" connectors. They had no idea what I
was talking about.




  #21   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 2,022
Default Muddle over left/right channel of TRS plug

On Fri, 25 Sep 2009 19:32:51 -0700, Peter Bennett
wrote:

On Sat, 26 Sep 2009 00:12:39 +0100, Stuart
wrote:

In article ,
Dave Plowman (News) wrote:

Tip ring sleeve. Unbalanced stereo or balanced mono. Or sometimes a mono
in and out on a mixer.


But, I think, more commomly known as a "Jack plug". Usually available in
2.5mm, 3.5mm and 1/4". The P.O. type 316 is 1/4", as are the ones more
commonly used in the applications Dave has suggested.


"jack plug" seems to be a British usage - elsewhere it is an oxymoron
- a plug is inserted into a jack, so you can't have a "jack plug". In
the US and Canada, the connectors are more commonly known as "phone
plug" (male) and "phone jack" (female).

I recall seeing a version slightly smaller than 1/4" (0.216?)
somewhere.

The telco versions have a different tip shape than the commercial
versions.


---
The old US military nomenclature for the MIL-SPEC 1/4", 2 conductor
phone plug was "PL55", and "pl68" for the 0.206", 3 conductor microphone
connector. (PTT, MIC HOT, GND)

Later on they were changed to "PJ055" (plug, jack???) and "PJ068".

Still later on they were changed to "M642/4-1" and "M642/5-1".

The panel mount mate for the PJ055 was a "JJ034" (jack, jack???) and for
the PJ068, the "JJ033", which were later changed to "M641/6-1" and
"M641/5-1"

The "plug, jack" and "jack, jack" confusion, I guess, has been cleared
up with the new nomenclature.

Here's a table:


OLD NEWER NEWEST
------+-------+----------
2 CONDUCTOR PLUG PL55 PJ055 M642/4-1
2 CONDUCTOR JACK JJ034 M641/6-1

3 CONDUCTOR PLUG PL68 PJ068 M642/5-1
3 CONDUCTOR JACK JJ033 M641/5-1


JF
  #22   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 3,469
Default Muddle over left/right channel of TRS plug

On 9/25/2009 2:05 PM Rich Grise spake thus:

On Fri, 25 Sep 2009 00:19:39 +0100, Peter wrote:

I have a 3.5mm TRS plug which is prewired. It looks like this

http://www.mycablemart.com/store/ima...1085_large.jpg

The tip of that TRS plug is connected to the red wire (RIGHT
channel).

Has that been done correctly? I thought the tip of the TRS plug is
the LEFT channel.

(I also have a 3.5mm TRS socket which is prewired and the red wire is
also the tip.)


Does it matter? Can you tell "right" from "left" by ear? Lessee, strings
on the left, brass on the right, percussion in back...

Of course if it's wrong, just fire up the ol' soldering iron, and swap
them. Takes about four minutes.


As an aside, wonder how many recordings (commercial ones) are out there
that have left and right channels reversed. (Obviously not determinable
on such material as punk rock.)


--
Found--the gene that causes belief in genetic determinism
  #23   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 6
Default Muddle over left/right channel of TRS plug

On 22:08 25 Sep 2009, Rich Grise wrote:

On Fri, 25 Sep 2009 17:38:21 +0100, Dave Plowman (News) wrote:

In article ,
William Sommerwerck wrote:
As to colours, in the UK some pro stuff uses red and green
as per the naval convention - ie red (port) left, green
(starboard) right. Whereas in domestic stuff red is usually
right. Just to add to the confusion.


As far as the RCA plugs are concerned, the Red plug has long
been Right.


Pro gear doesn't use RCA plugs. But can use TRS.


Is "TRS" a mnemonic for something? All I can think of when I see
it is the Radio Shack/Tandy TRS-80, pronounced "Trash 80". ;-)

Thanks,
Rich


The wikipedia has a useful entry on TRS (tip-ring-sleeve) connectors.

Unfortunately the wiki doesn't explain why the left channel on my
adaptors are connected to a RED wire.

  #24   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 43,017
Default Muddle over left/right channel of TRS plug

In article ,
Peter wrote:
Unfortunately the wiki doesn't explain why the left channel on my
adaptors are connected to a RED wire.


Buy another adaptor from the same source and see if it's the same. Could
be your one is simply made incorrectly - or actually sold as a reversal
one.

--
*If at first you don't succeed, then skydiving definitely isn't for you *

Dave Plowman London SW
To e-mail, change noise into sound.
  #25   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 6
Default Muddle over left/right channel of TRS plug

On 22:05 25 Sep 2009, Rich Grise wrote:

On Fri, 25 Sep 2009 00:19:39 +0100, Peter wrote:

I have a 3.5mm TRS plug which is prewired. It looks like this

http://www.mycablemart.com/store/ima...1085_large.jpg

The tip of that TRS plug is connected to the red wire (RIGHT
channel).

Has that been done correctly? I thought the tip of the TRS plug
is the LEFT channel.

(I also have a 3.5mm TRS socket which is prewired and the red
wire is also the tip.)


Does it matter? Can you tell "right" from "left" by ear? Lessee,
strings on the left, brass on the right, percussion in back...

Of course if it's wrong, just fire up the ol' soldering iron,
and swap them. Takes about four minutes.

Cheers!
Rich


Hi Rich. I would love to just resolder them but the pics show the
connectors are moulded on to the wires. (That's how we spell
"molded" here in the UK.)

It's not for a fixed setup. I'm testing mono microphones but I also
need to eliminate disparities in the recorder and player.

Here is are some typical set ups.

--------------------

I use a stereo portable recorder and make a recording with one test
mic on one channel and another test mic on the other channel.


To compare the two recordings I might do this. Take the L or R (and
I need to identify which is which because that tells me which mic I
am listening to) and feed its signal into both L and R conductors on
the line-in socket on the PC.

To eliminate disparities created by the recorder (maybe it records
differently on its L and its R channel) I need to be able to keep
track of the channels when I switch L and R around.

An alternative requirement is when I to feed the portable recorder's
output into the PC on both channels (stereo) and then use I would an
audio editor to replay either L or R on its own. To avoid colouration
from the different L and R replay channels of the PC, I connect the
single played channel so that it comes through both speakers. I have
to do that by taking the output from the 3.5mm "audio-out" connector
which is on only one channel and connect it to be on both L PLUS R on
the input of my powered speakers. I use the adaptors I mention for
that last step. (In fact it s a bit more comlicted because I also use
some one-piece RCA phono couplers to spilt out the two channels.

And there are also other combinations of equipment I use where I need
to be sure about L and R.

Phew! Anyway, you can see that mixing up L and R on account strangely
coloured connectors is going to add points at which errors in
labelling can creep in.

I posted because I was wondering if RED = TIP = R-CHANNEL was part of
some convention I had not heard of which may have made sense if only
I knew what the convention is.


--------------------

I tried to get around any ambiguity from the above by using these two
components together but their prescence just adds unncessary
complication because I wire and reqire these combos quite a lot.
The extra connectors also add more physical connections which may get
be made 100% and can introduce noise to the audio. (3.5mm connectors
are prone to this.)

http://cpc.farnell.com/pro-signal/ps...mm-s-to-phono-
p/dp/AV15537

http://cpc.farnell.com/pro-signal/ps...-phono-to-3-5-
jack-st/dp/AV17296


--------------------

Maybe those connectors with the RED wired to the tip which I got from
CPC Farnell are from some incorrectly-wired job lot which they CPC
were selling off cheap. See links:

http://cpc.farnell.com/pro-signal/ps...ug-to-2x-mono-
sockets/dp/AV13710

http://cpc.farnell.com/pro-signal/ps...-5mm-s-socket-
2xphono-2m/dp/AV13783




  #26   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 6
Default [REPOSTED WITH FEWER TYPOS] Muddle over left/right channel

On 22:05 25 Sep 2009, Rich Grise wrote:
On Fri, 25 Sep 2009 00:19:39 +0100, Peter wrote:

I have a 3.5mm TRS plug which is prewired. It looks like this

http://www.mycablemart.com/store/ima...1085_large.jpg

The tip of that TRS plug is connected to the red wire (RIGHT
channel).

Has that been done correctly? I thought the tip of the TRS plug
is the LEFT channel.

(I also have a 3.5mm TRS socket which is prewired and the red
wire is also the tip.)


Does it matter? Can you tell "right" from "left" by ear? Lessee,
strings on the left, brass on the right, percussion in back...

Of course if it's wrong, just fire up the ol' soldering iron,
and swap them. Takes about four minutes.

Cheers!
Rich



I'VE REPOSTED MY MESSAGE WITH FEWER TYPOS!
IGNORE THE PREVIOUS VERSION.


Hi Rich. I would love to just resolder the adaptors but my pics show
the connectors are moulded on to the wires.

Worse still, it's not for a fixed setup because I'm testing mono
microphones and need to eliminate disparities in the recorder and
player. Below are some typical set ups.

--------------------

I use a stereo portable recorder and make a recording with one test
mic on one channel and another mic on the other channel.

To compare the two recordings I might do this: Take the L or R (and
I need to identify which is which because of course that tells me
which mic I am listening to) and feed its signal into both L and R
conductors on the line-in socket on the PC.

To eliminate disparities created by the recorder (maybe it records
differently on its L and its R channel) I need to be able to keep
track of the channels because I may make another recording with mics
swapped around.

An alternative requirement I have is when I to feed the portable
recorder's output into the PC on both channels (stereo) and then I
would use an audio editor to replay either L or R channel on its own.
To avoid colouration from the different L and R replay channels of
the PC, I connect the single played channel so that it comes through
both PC speakers. I do that by taking the output from one channel of
the PC's 3.5mm "audio-out" connector and connect it to both L PLUS R
of the input of my powered PC speakers. I would use the adaptors
with the colour problem for that last step.

In fact it's just a little bit more involved than that because
sometimes I use a one-piece "RCA phono" coupler to spilt out the two
channels. I also need some other adaptors as these links show.

http://cpc.farnell.com/pro-signal/ps...mm-s-to-phono-
p/dp/AV15537

http://cpc.farnell.com/pro-signal/ps...-phono-to-3-5-
jack-st/dp/AV17296

However the presence of all this extra stuff just adds unnecessary
complication because I wire and rewire these combos quite a lot. The
extra connectors also add more physical connections which may NOT get
be made 100% electrically correctly and can introduce noise to the
audio. Those 3.5mm connectors are all too prone to this.

There are also other combinations of equipment which need me to be
sure about L and R. I might work through these combinations every 5
or 10 minutes depending on the results I am getting.

Phew! You can see that mixing up L and R on account strangely
coloured connectors is going to add points at which errors in
labelling can creep in.

I posted originally because I was wondering if RED = TIP = R-CHANNEL
was part of some convention I had not heard of which may have made
sense if only I knew what the convention is.

--------------------

Maybe these connectors I have got are some incorrectly wired rejects
which are being sold by CPC Farnell. See links:

http://cpc.farnell.com/pro-signal/ps...ug-to-2x-mono-
sockets/dp/AV13710

http://cpc.farnell.com/pro-signal/ps...-5mm-s-socket-
2xphono-2m/dp/AV13783


Peter
  #27   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 43,017
Default Muddle over left/right channel of TRS plug

In article ,
Peter wrote:
Hi Rich. I would love to just resolder them but the pics show the
connectors are moulded on to the wires. (That's how we spell
"molded" here in the UK.)


Then put some coloured tape round them - or buy a new one.

--
*Ever stop to think and forget to start again?

Dave Plowman London SW
To e-mail, change noise into sound.
  #28   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 3,833
Default Muddle over left/right channel of TRS plug

Unfortunately the wiki doesn't explain why the left channel
on my adaptors is connected to a RED wire.


Careless assembly. I've seen it in other inexpensive adapters.


  #29   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 1,001
Default Muddle over left/right channel of TRS plug

William Sommerwerck wrote:
Unfortunately the wiki doesn't explain why the left channel
on my adaptors is connected to a RED wire.



Careless assembly. I've seen it in other inexpensive adapters.


I'm sure the dealer got a deal on them.


  #30   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 501
Default [REPOSTED WITH FEWER TYPOS] Muddle over left/right channel

On Mon, 28 Sep 2009 10:50:30 +0100, Peter wrote:
On 22:05 25 Sep 2009, Rich Grise wrote:
On Fri, 25 Sep 2009 00:19:39 +0100, Peter wrote:

I have a 3.5mm TRS plug which is prewired. It looks like this

http://www.mycablemart.com/store/ima...1085_large.jpg

The tip of that TRS plug is connected to the red wire (RIGHT
channel).

Has that been done correctly? I thought the tip of the TRS plug
is the LEFT channel.

(I also have a 3.5mm TRS socket which is prewired and the red
wire is also the tip.)


Does it matter? Can you tell "right" from "left" by ear? Lessee,
strings on the left, brass on the right, percussion in back...

Of course if it's wrong, just fire up the ol' soldering iron,
and swap them. Takes about four minutes.


Hi Rich. I would love to just resolder the adaptors but my pics show
the connectors are moulded on to the wires.

Worse still, it's not for a fixed setup because I'm testing mono
microphones and need to eliminate disparities in the recorder and
player. Below are some typical set ups.

I use a stereo portable recorder and make a recording with one test
mic on one channel and another mic on the other channel.

To compare the two recordings I might do this: Take the L or R (and
I need to identify which is which because of course that tells me
which mic I am listening to) and feed its signal into both L and R
conductors on the line-in socket on the PC.


When you start your test, tap one mic say, two times, and tap the
other mic three or four times. (tap as in, with your fingernail.)

Then see which channel they come out on. :-)

To test the recorder, just use one mic.

Of course, if the outputs are _also_ swapped, then you'd need more
experimentation.

Unfortunately, I don't know if there even _is_ a standard for those
TRS plugs/jacks.

Good Luck!
Rich



  #31   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 60
Default Muddle over left/right channel of TRS plug

On Sep 25, 10:06*am, "William Sommerwerck"
wrote:
Nope. Tip is left. It has been for 50 years.

I happen to like my tips on the right.


Why do I feel I'm sitting under the caterpillar's mushroom?

___________
This will all be just fine!

I just use the convention - Red Right, and I never confuse them.

-CC
  #32   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 12,924
Default Muddle over left/right channel of TRS plug


Jamie wrote:

William Sommerwerck wrote:
Unfortunately the wiki doesn't explain why the left channel
on my adaptors is connected to a RED wire.



Careless assembly. I've seen it in other inexpensive adapters.


I'm sure the dealer got a deal on them.



How would 'the dealer' even know to ask for 'a deal'?


--
You can't have a sense of humor, if you have no sense!
  #33   Report Post
Posted to alt.engineering.electrical,sci.electronics.repair,sci.electronics.basics
external usenet poster

Posts: 6
Default [REPOSTED WITH FEWER TYPOS] Muddle over left/right channel

On 20:01 28 Sep 2009, Rich Grise wrote:

On Mon, 28 Sep 2009 10:50:30 +0100, Peter wrote:
On 22:05 25 Sep 2009, Rich Grise wrote:
On Fri, 25 Sep 2009 00:19:39 +0100, Peter wrote:

I have a 3.5mm TRS plug which is prewired. It looks like
this

http://www.mycablemart.com/store/ima.../1085_large.jp
g

The tip of that TRS plug is connected to the red wire (RIGHT
channel).

Has that been done correctly? I thought the tip of the TRS
plug is the LEFT channel.

(I also have a 3.5mm TRS socket which is prewired and the red
wire is also the tip.)

Does it matter? Can you tell "right" from "left" by ear?
Lessee, strings on the left, brass on the right, percussion in
back...

Of course if it's wrong, just fire up the ol' soldering iron,
and swap them. Takes about four minutes.


Hi Rich. I would love to just resolder the adaptors but my pics
show the connectors are moulded on to the wires.

Worse still, it's not for a fixed setup because I'm testing
mono microphones and need to eliminate disparities in the
recorder and player. Below are some typical set ups.

I use a stereo portable recorder and make a recording with one
test mic on one channel and another mic on the other channel.

To compare the two recordings I might do this: Take the L or R
(and I need to identify which is which because of course that
tells me which mic I am listening to) and feed its signal into
both L and R conductors on the line-in socket on the PC.


When you start your test, tap one mic say, two times, and tap
the other mic three or four times. (tap as in, with your
fingernail.)

Then see which channel they come out on. :-)

To test the recorder, just use one mic.

Of course, if the outputs are _also_ swapped, then you'd need
more experimentation.

Unfortunately, I don't know if there even _is_ a standard for
those TRS plugs/jacks.

Good Luck!
Rich


Thanks for the info. I wrote that the real problem is the ease and
speed of channel identification rather than how to use tapping
procedures to determine which channel is which (and which rely on a
visual indication of recording levels).

I think the problem was probably due to some duff batches which CPC
Farnell were selling off cheaply. I'll check some more of the ones I
bought and see if they'll swap them for correct ones. The moral must
be not to trust CPC Farnell's quality assurance.

Unfortunately the electronic engineering supplier Farnell UK (not CPC
Farnell) also draws from the same stock for these parts and they say
this on their website: Connectors are an important part of every
electronic design and Farnell are committed to bringing you the
latest products from the leading Connector manufacturers

What a cheek!

http://uk.farnell.com/connectors

Reply
Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules

Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
Problem with audio from left rear channel JVC receiver [email protected] Electronics Repair 1 May 7th 07 10:32 PM
PC Speakers / Ampilier - No Output from Left Channel ML Electronics Repair 1 September 24th 05 09:42 PM
28PT4521 - Changing the TV-channel left me merely a chirping box. Luc V Electronics Repair 0 August 17th 05 03:17 AM
NAD 3125 left channel weak TDWesty Electronics Repair 3 June 14th 05 11:20 PM
left channel cuts out on receiver help please steve s Electronics Repair 3 August 26th 04 10:56 AM


All times are GMT +1. The time now is 06:20 AM.

Powered by vBulletin® Copyright ©2000 - 2024, Jelsoft Enterprises Ltd.
Copyright ©2004-2024 DIYbanter.
The comments are property of their posters.


About Us

"It's about DIY & home improvement"
