#1
Posted to rec.woodworking
|
|||
|
|||
Vintage Craftsman Planer
If anyone is familiar with this
http://i1181.photobucket.com/albums/...psbhg2aztv.jpg Could you tell me the diameter of the motor pulley? Thanks! |
|
#2
Posted to rec.woodworking
|
|||
|
|||
|
Vintage Craftsman Planer
On 05/28/2017 5:49 AM, Bob Villa wrote:
If anyone is familiar with this http://i1181.photobucket.com/albums/...psbhg2aztv.jpg Could you tell me the diameter of the motor pulley? Thanks! Search OWWM; I've never seen that before, though. Interesting. But, set it up so the cutterhead is running in the range of 3650-5000 SFM and it'll be fine. -- |
|
#3
Posted to rec.woodworking
|
|||
|
|||
|
Vintage Craftsman Planer
On Sunday, May 28, 2017 at 7:51:11 AM UTC-5, dpb wrote:
On 05/28/2017 5:49 AM, Bob Villa wrote: If anyone is familiar with this http://i1181.photobucket.com/albums/...psbhg2aztv.jpg Could you tell me the diameter of the motor pulley? Thanks! Search OWWM; I've never seen that before, though. Interesting. But, set it up so the cutterhead is running in the range of 3650-5000 SFM and it'll be fine. -- Thanks, that should be easy to figure out! |
|
#4
Posted to rec.woodworking
|
|||
|
|||
|
Vintage Craftsman Planer
On Sunday, May 28, 2017 at 7:51:11 AM UTC-5, dpb wrote:

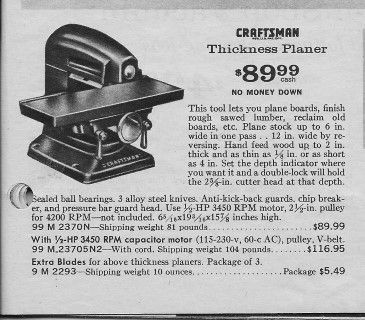

On 05/28/2017 5:49 AM, Bob Villa wrote: If anyone is familiar with this http://i1181.photobucket.com/albums/...psbhg2aztv.jpg Could you tell me the diameter of the motor pulley? Thanks! Search OWWM; I've never seen that before, though. Interesting. But, set it up so the cutterhead is running in the range of 3650-5000 SFM and it'll be fine. -- Here is an old ad for it. http://i1181.photobucket.com/albums/...338w377. jpeg |
|
#5
Posted to rec.woodworking
|
|||
|
|||
|
Vintage Craftsman Planer
On Sunday, May 28, 2017 at 8:06:41 AM UTC-5, Bob Villa wrote:
On Sunday, May 28, 2017 at 7:51:11 AM UTC-5, dpb wrote: On 05/28/2017 5:49 AM, Bob Villa wrote: If anyone is familiar with this http://i1181.photobucket.com/albums/...psbhg2aztv.jpg Could you tell me the diameter of the motor pulley? Thanks! Search OWWM; I've never seen that before, though. Interesting. But, set it up so the cutterhead is running in the range of 3650-5000 SFM and it'll be fine. -- Here is an old ad for it. http://i1181.photobucket.com/albums/...338w377. jpeg Holy Crap...it says in the ad about the diameter of the pulley...but it seems slow! |
|
#6
Posted to rec.woodworking
|
|||
|
|||
|
Vintage Craftsman Planer
On 05/28/2017 8:11 AM, Bob Villa wrote:
.... Holy Crap...it says in the ad about the diameter of the pulley...but it seems slow! 4200 rpm is right in the sweet spot I mentioned??? -- |
|
#7
Posted to rec.woodworking
|
|||
|
|||
|
Vintage Craftsman Planer
On 05/28/2017 10:48 AM, dpb wrote:
On 05/28/2017 8:11 AM, Bob Villa wrote: ... Holy Crap...it says in the ad about the diameter of the pulley...but it seems slow! 4200 rpm is right in the sweet spot I mentioned??? Oopsies! I misread (it's _awfully_ fine print! is my story and I'm stickin' to it!  ) the diameter as 3+" instead of 2-5/8". At 4200 rpm, that is a little under 3000 sfpm which is a little low, granted. But, that's a pretty small machine; from the original picture had thought it quite a bit larger so I'm guessing feeder speed is pretty slow which will counteract the problem. Also, bearings probably not the _most_ robust, altho of that vintage things were just typically quite a lot more robust so that's likely not a real concern. Might push it a little beyond that target; I'd not want to get carried away, though... -- |
